Balance beam column hook

ITM balance beam column hook

The ITM balance beam column hook facilitates the assembly and disassembly of a chute colum. The main function of the balance beam column hook is to balance the support of the sections that make up the column of the plastic chutes.

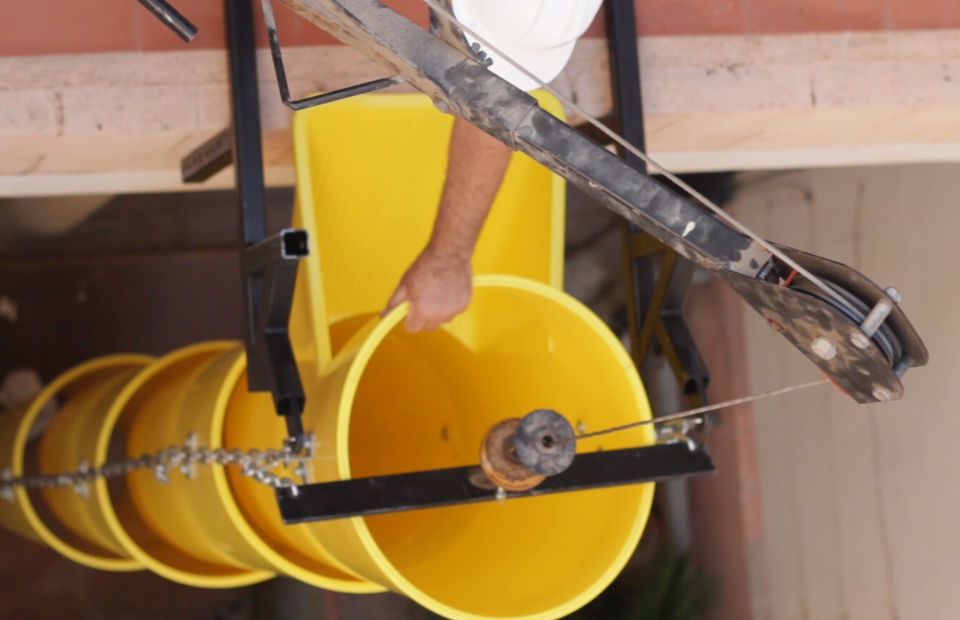

The ITM balance beam column hook facilitates the assembly of the chutes.

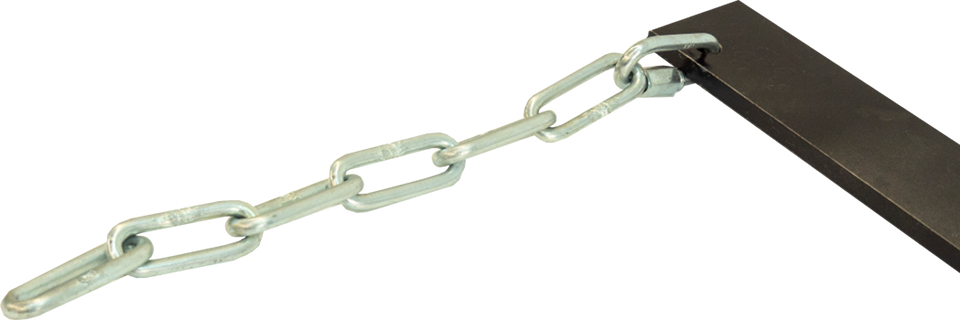

The stringer chains for ITM chutes are extra-strengthened, with links of 7 mm diameter, and comply with DIN 763.

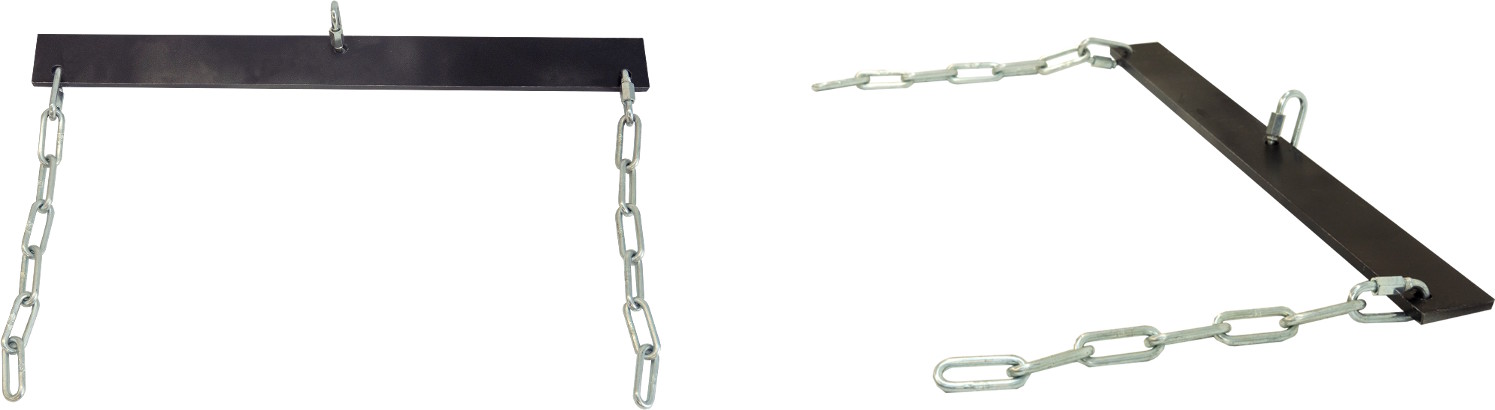

This accessory is formed by a rectangular piece of steel with three perforations, two at the ends and one in the middle, in which 3 carabiners are placed.

The two holes in the ends connect, by means of chains, the balance beam column hook with the ends of the first tube of the chute colum.

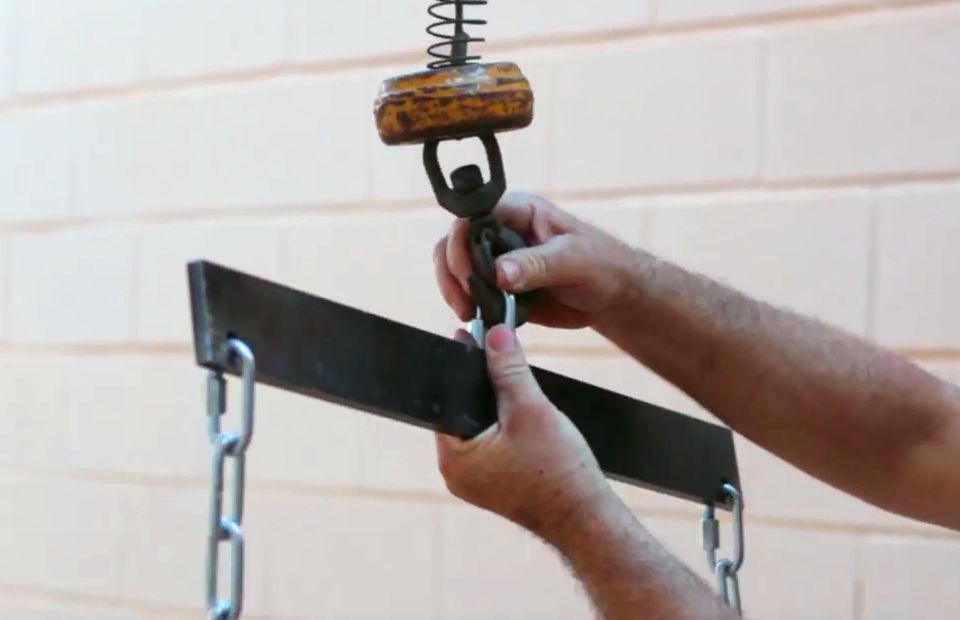

The central eyelet serves to hold, also with a chain, the accessory with the machinery used for lifting the column (such as a winch or a crane).

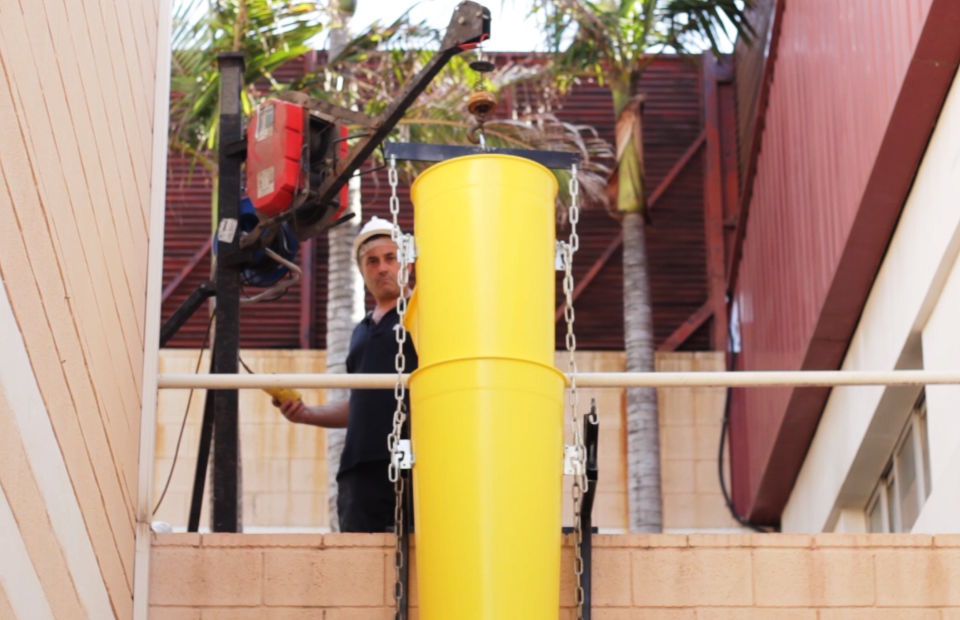

The balance beam column hook helps to raise the chutes.
ITM Balance beam column hook
The balance beam column hook is an accessory of the debris evacuation system.

Dimensions

ITM markets two balance beam column hooks, one for standard chutes and the other for the maxi

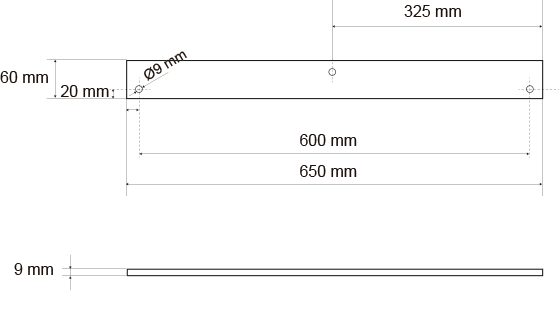

Measurements of the balance beam column hook for the installation of a debris evacuation system.

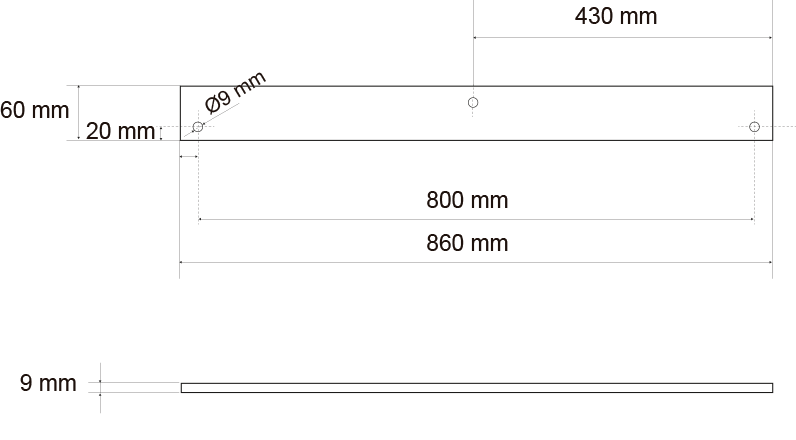

Measurements of the balance beam column hook for the installation of a Maxi debris evacuation system.

This may interest you

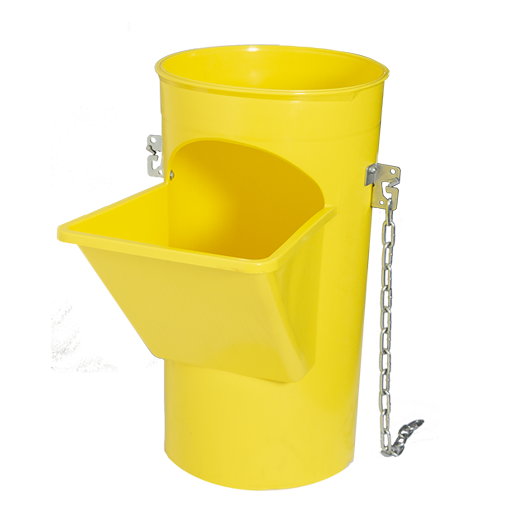

Standard debris chute

Maxi debris chute

Support bracket for buildings

Balance beam column hook

Mortar skip

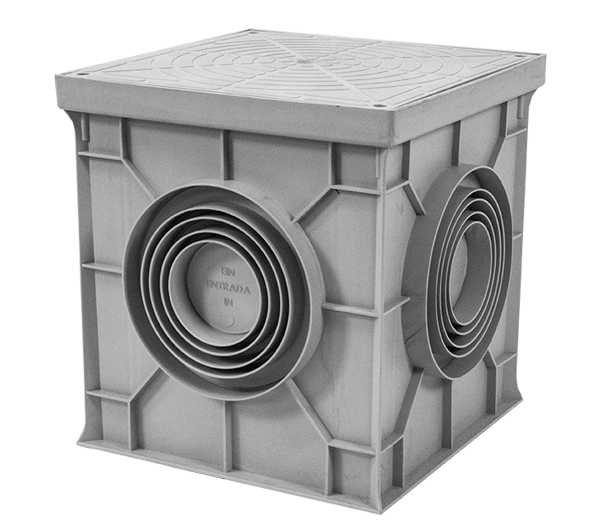

Plastic catch basin

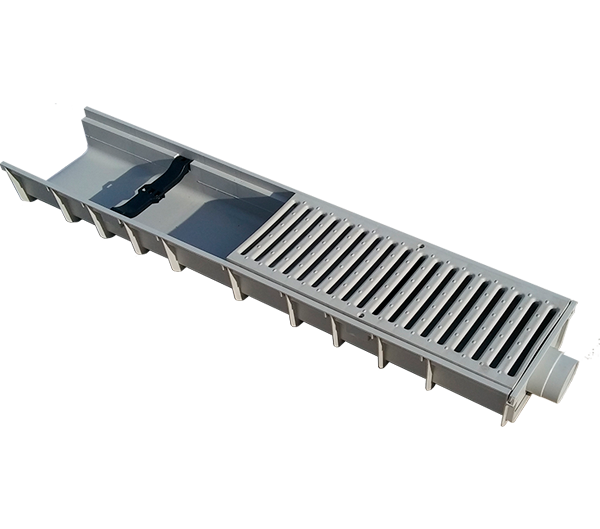

Channel drains

Guardrails guide tubes

Rebar protection caps

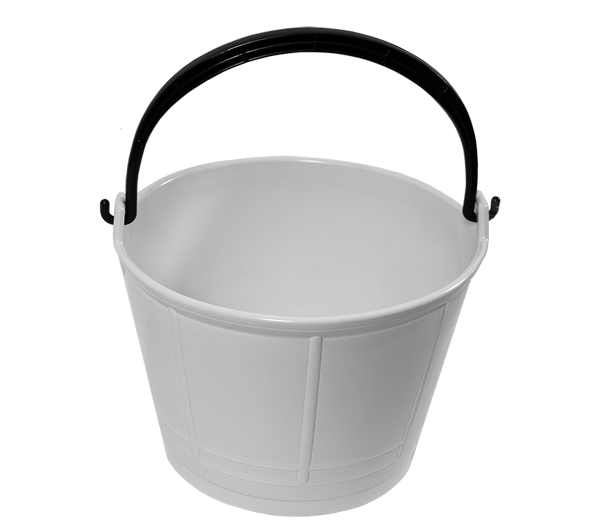

Builders buckets
