Plastic catch basin

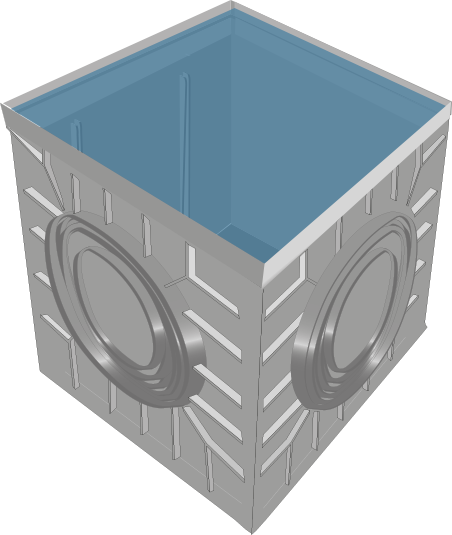

ITM plastic catch basin

The ITM plastic catch basin is a register used in sanitation networks to receive, link and distribute underground pipelines or conduits.
It can also be used in electricity distribution networks and other wiring services such as telecommunications.

The plastic catch basin perform the same functions as the cement sump, but it's cheaper, permits faster installation, and has the standards for the industrial production of large volume, with a homogeneous appearance.

They are injected in two colors: grey or black.

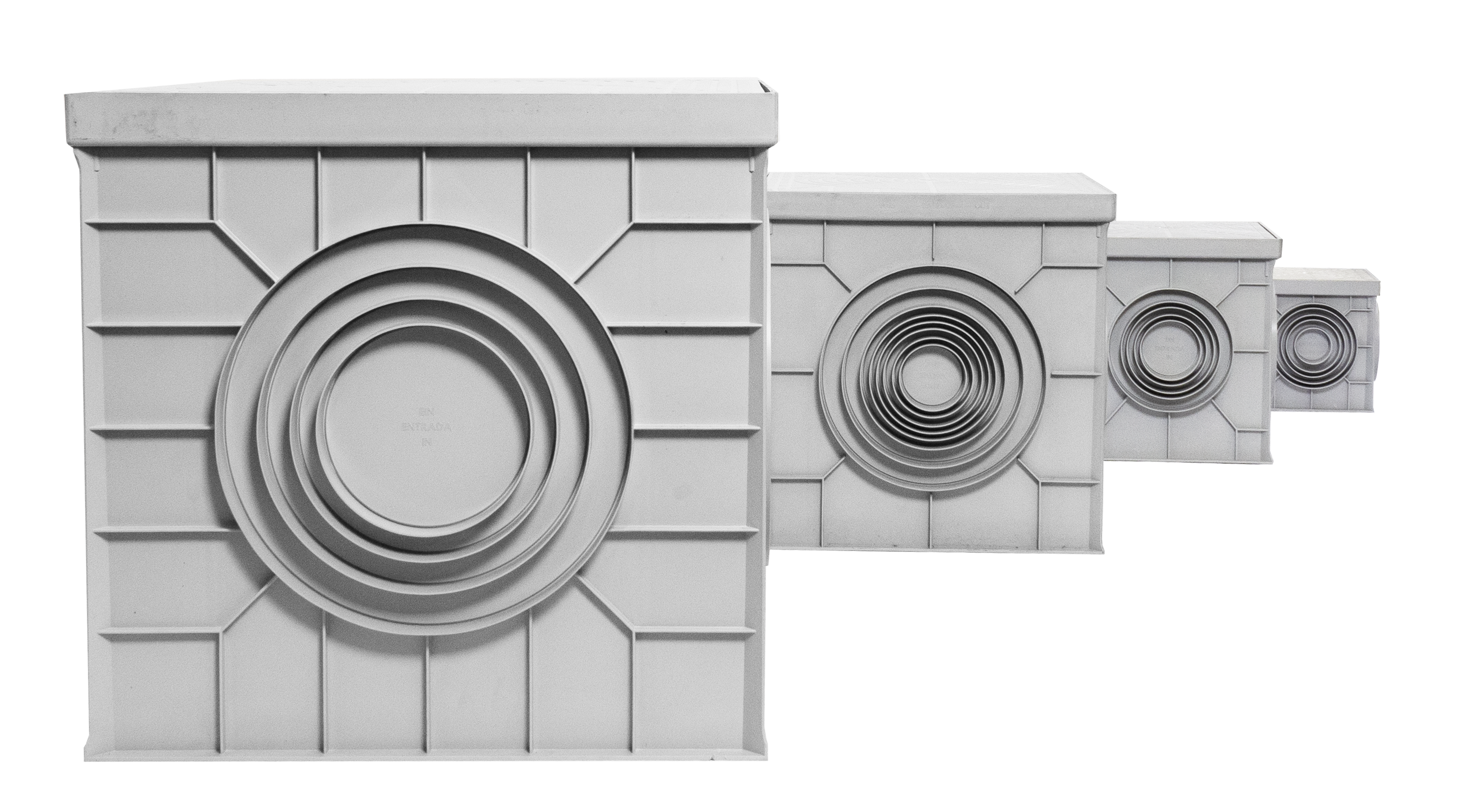

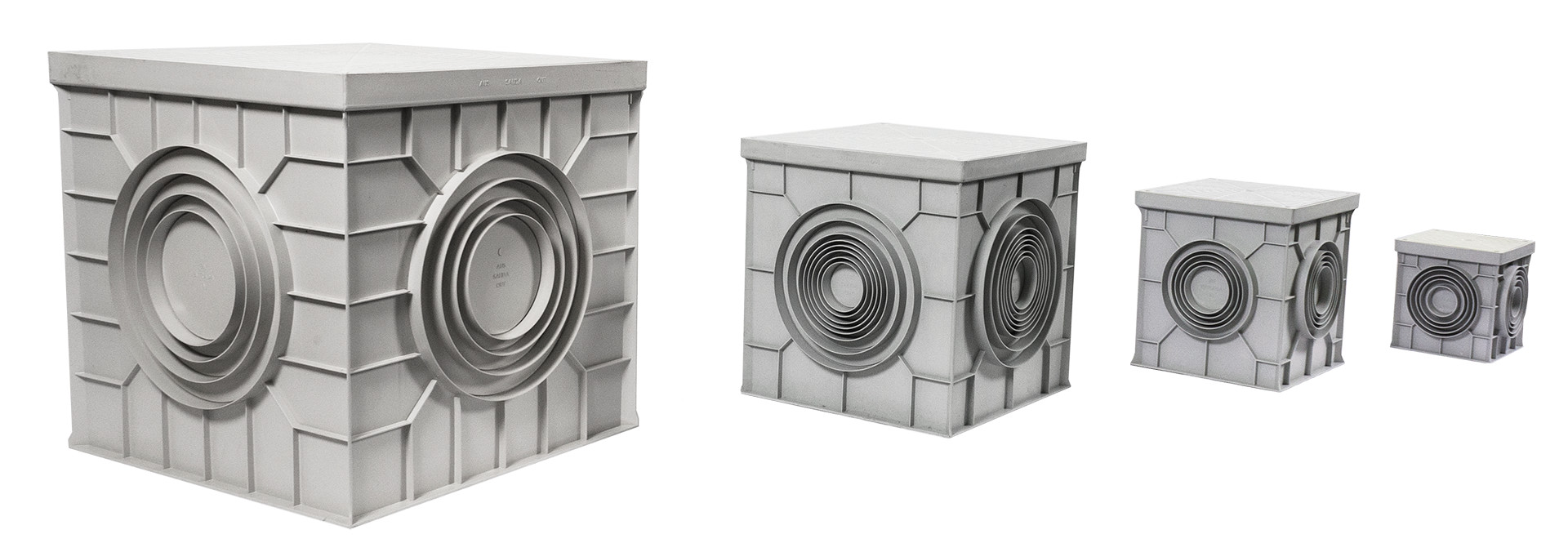

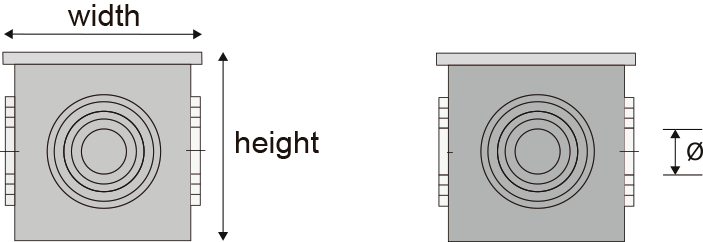

Dimensions

Cubic plastic catch basin
Dimensions in mm Lateral pipes adaptation diameter in mm
200x200 50 - 75 - 90 - 110 - 125
300x300 75 - 90 - 110 - 125 - 160
400x400 75 - 90 - 110 - 125 - 140 - 160 - 200 - 250
450x450 160 - 200 - 250 - 315
550x550 160 - 200 - 250 - 315

Accesories

Lid

The lid can be compact (totally closed), or perforated (with drainage holes), according to the customer's needs.

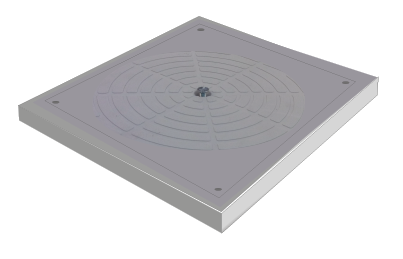

Compact

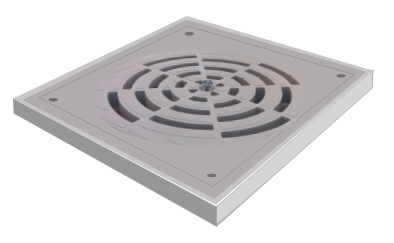

Perforated

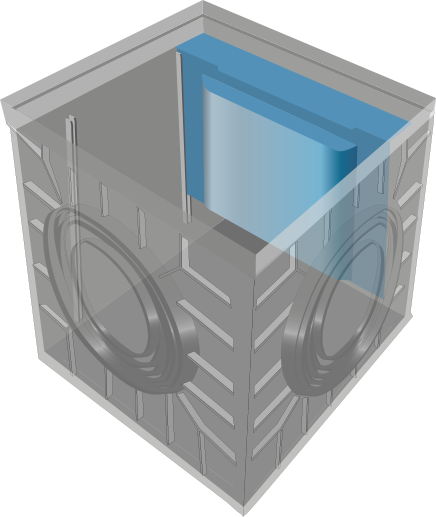

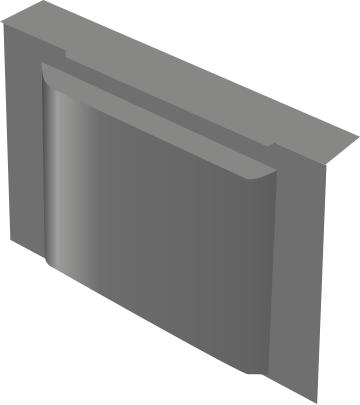

Siphon plate

Prevents any odors from the pipes.

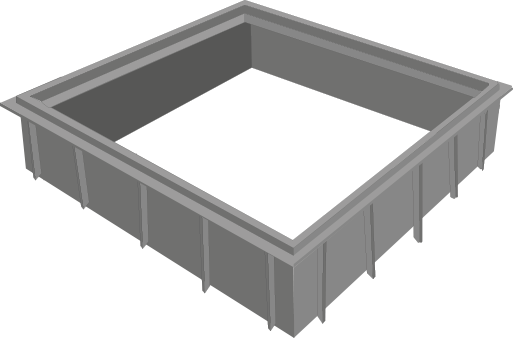

Extension

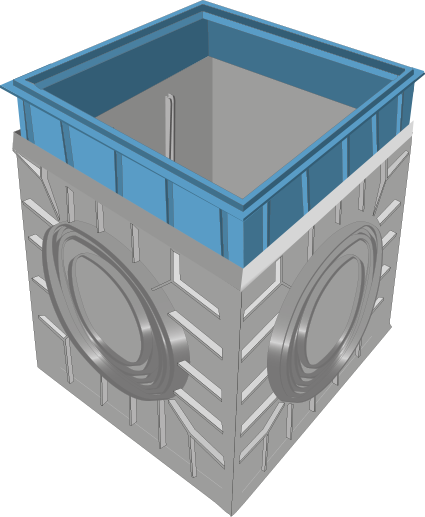

The extensions are designed to increase the height of the square catch basin when more depth is required.

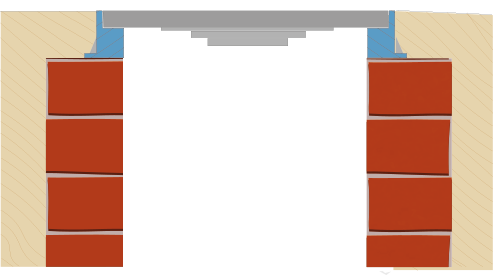

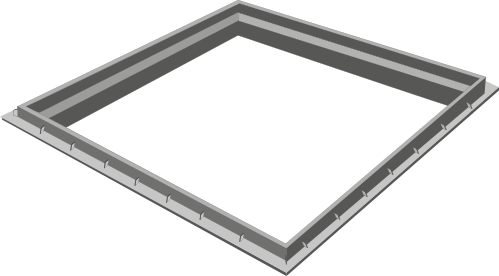

Frame

It allows to fix an ITM plastic lid to the floor construction registers, maintaining the homogeneity of the installation.

Packing

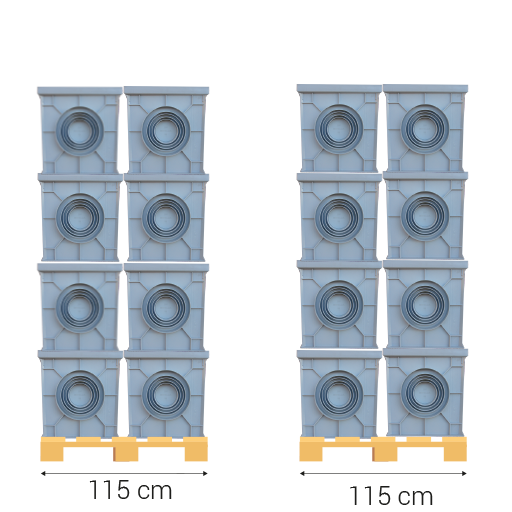

450/550 milimetres
16 Units per pallet

Pallet dimensions: 115 centimeters square

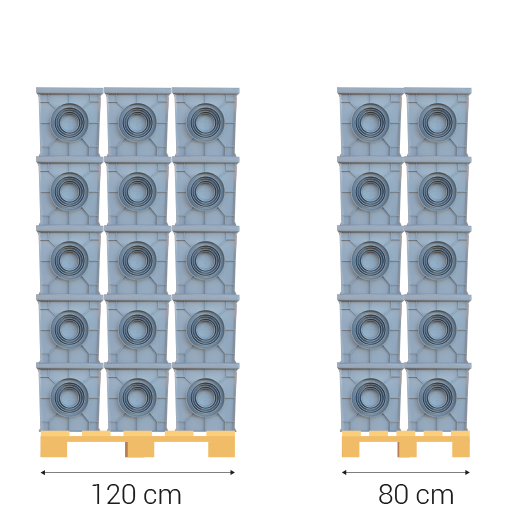

400 milimetres
30 Units per pallet

Pallet dimensions: 80x120 centimeters

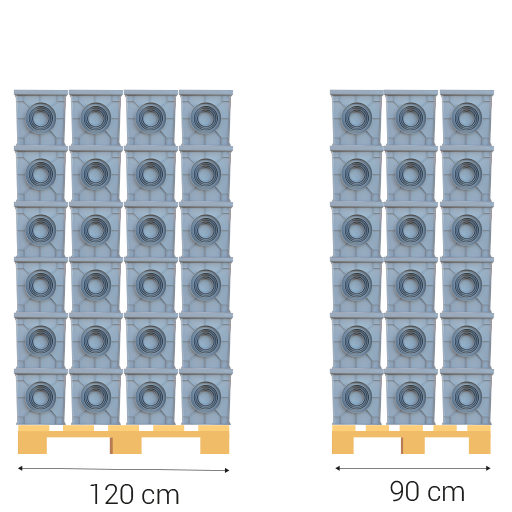

300 milimetres
72 Units per pallet

Pallet dimensions: 80x120 centimeters

200 milimetres
216 Units per pallet

Pallet dimensions: 80x120 centimeters

This may interest you

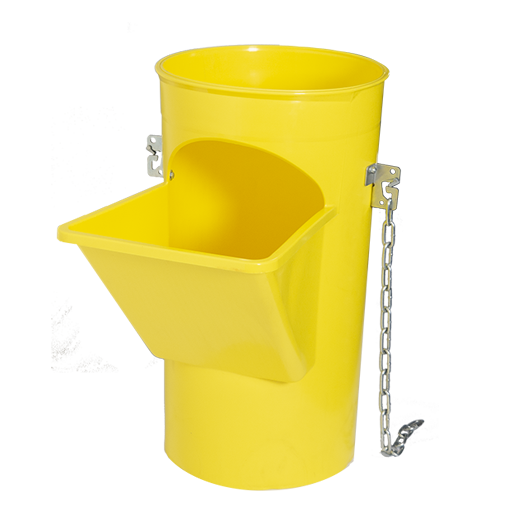

Standard debris chute

Maxi debris chute

Support bracket for buildings

Balance beam column hook

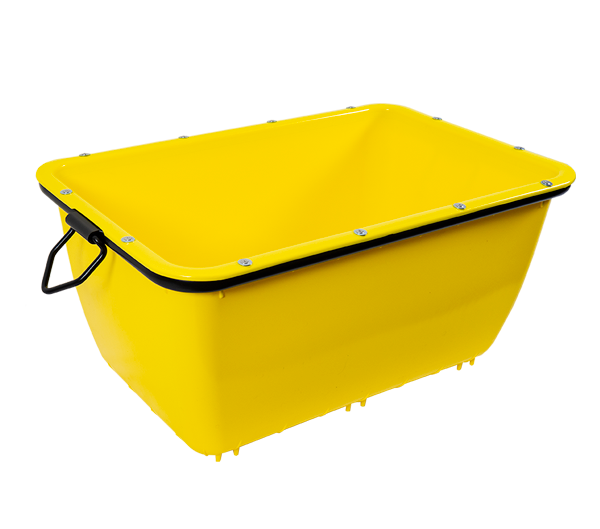

Mortar skip

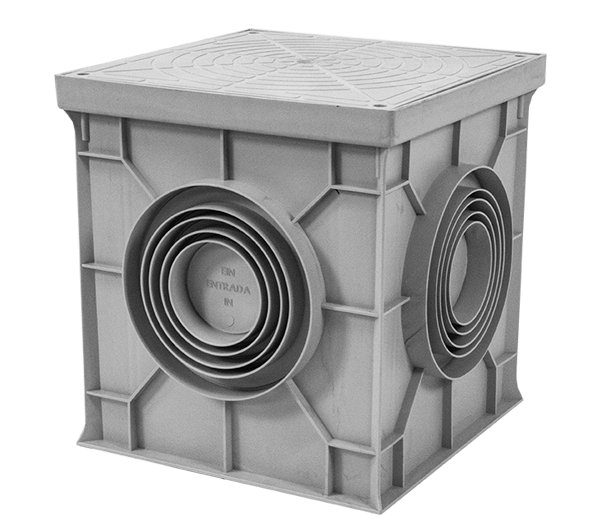

Plastic catch basin

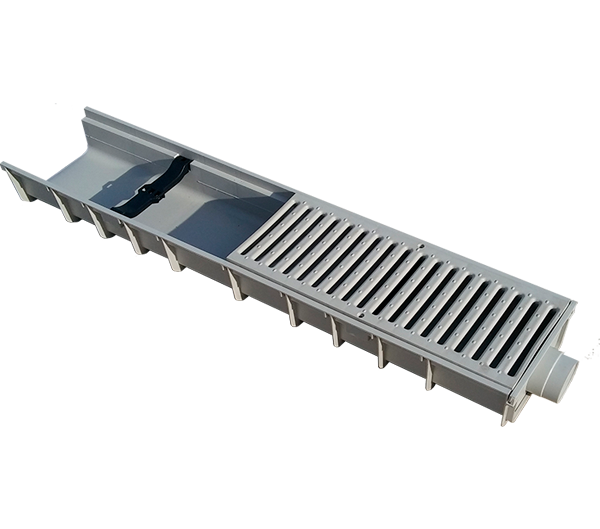

Channel drains

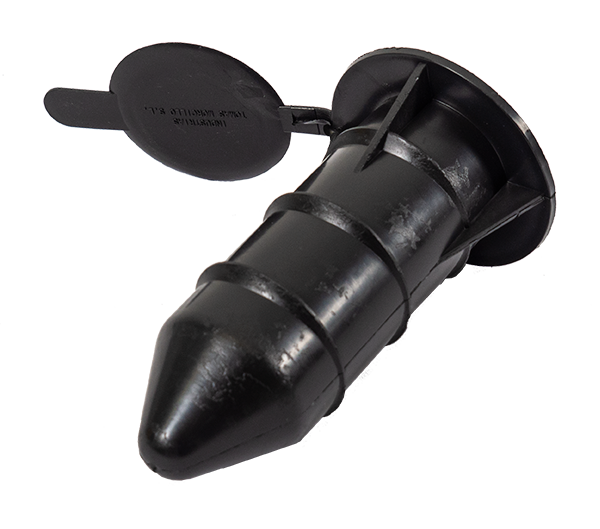

Guardrails guide tubes

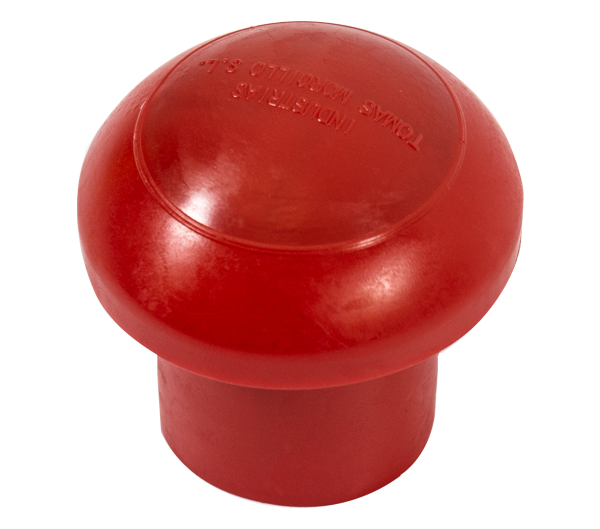

Rebar protection caps

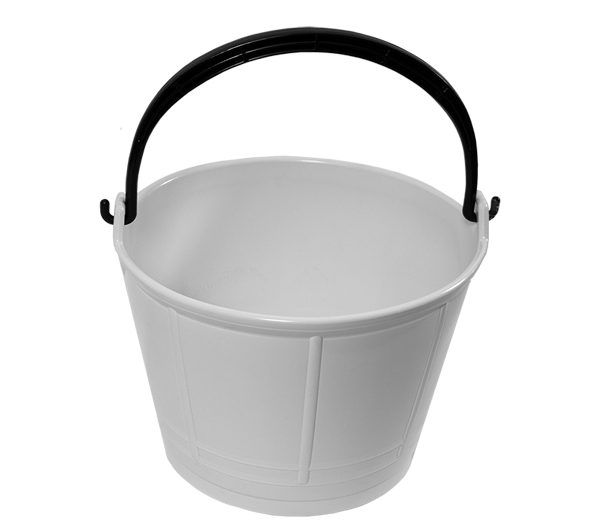

Builders buckets
