Debris chute

ITM Standart debris chute
ITM Standart debris chute with hopper
Calculate how many chutes and hoppers you need ITM CHUTES

Debris removal system components

The standard debris evacuation system is composed of two components: the ITM debris chute and the chute with hopper

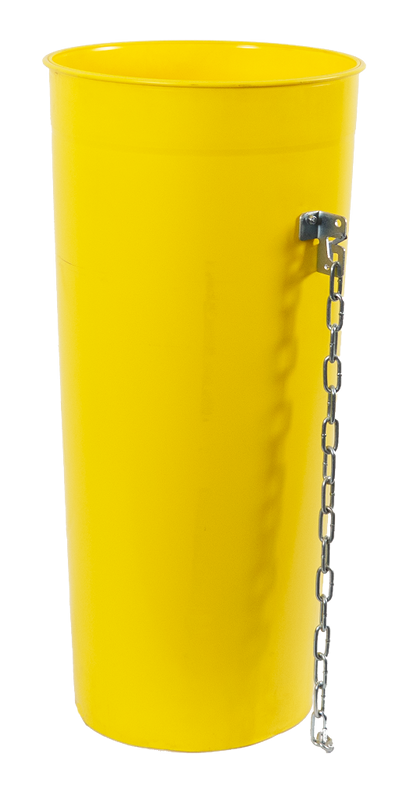

ITM Chutes

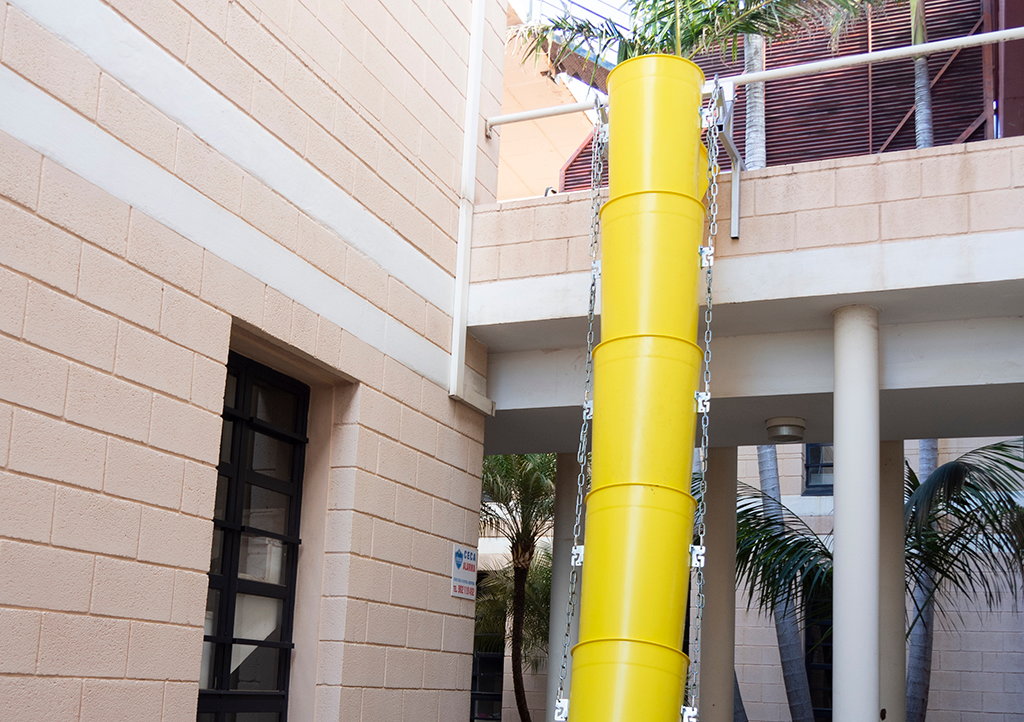

The ITM plastic chutes are an efficient solution for the correct evacuation of debris on any construction site, ensuring pedestrian safety, avoiding the escape of debris and reducing the effect of noise and dust, which are especially annoying in urban environments.

Its use is very simple. A succession of tubes joined together is placed from the evacuation point to the container.

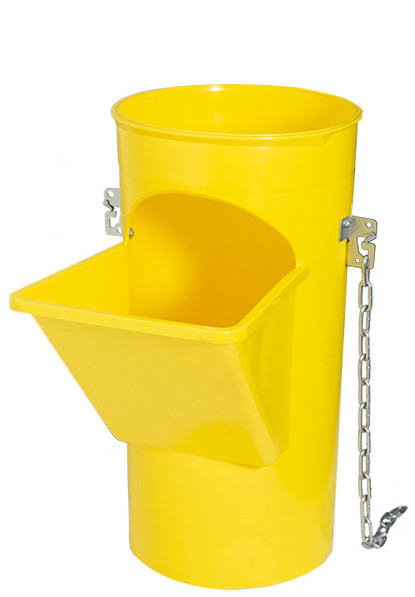

ITM Chutes with hopper

The ITM plastic chute with hopper is the initial piece of the rubble chute column, indicated for the debris evacuation on any construction site. It can be used, according to the needs of construction, as an intermediate or lateral loading mouth.

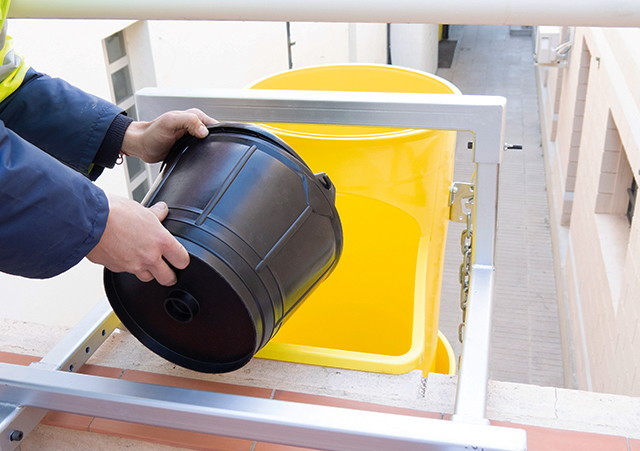

It is perfect to enable a debris evacuation point from any part of the rubbish chute column. The ITM hoppers give construction professionals access to the rubble chutes column from a window, a balcony or intermediate floors.

Dimensions

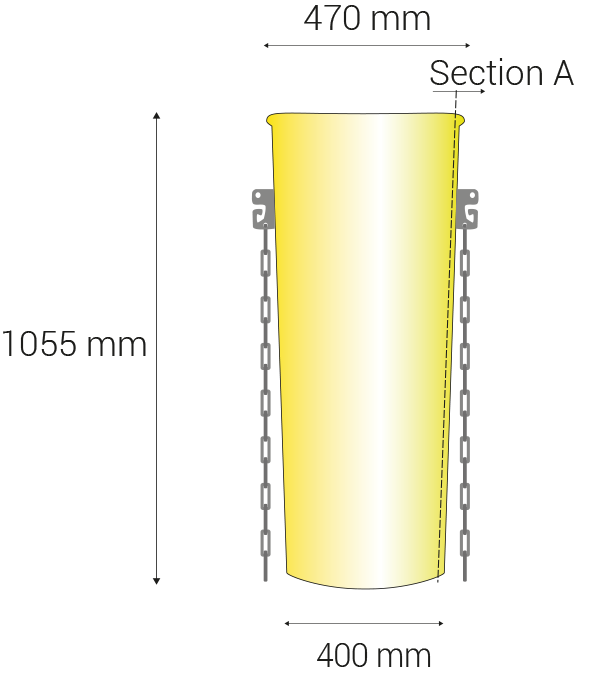

ITM Chutes

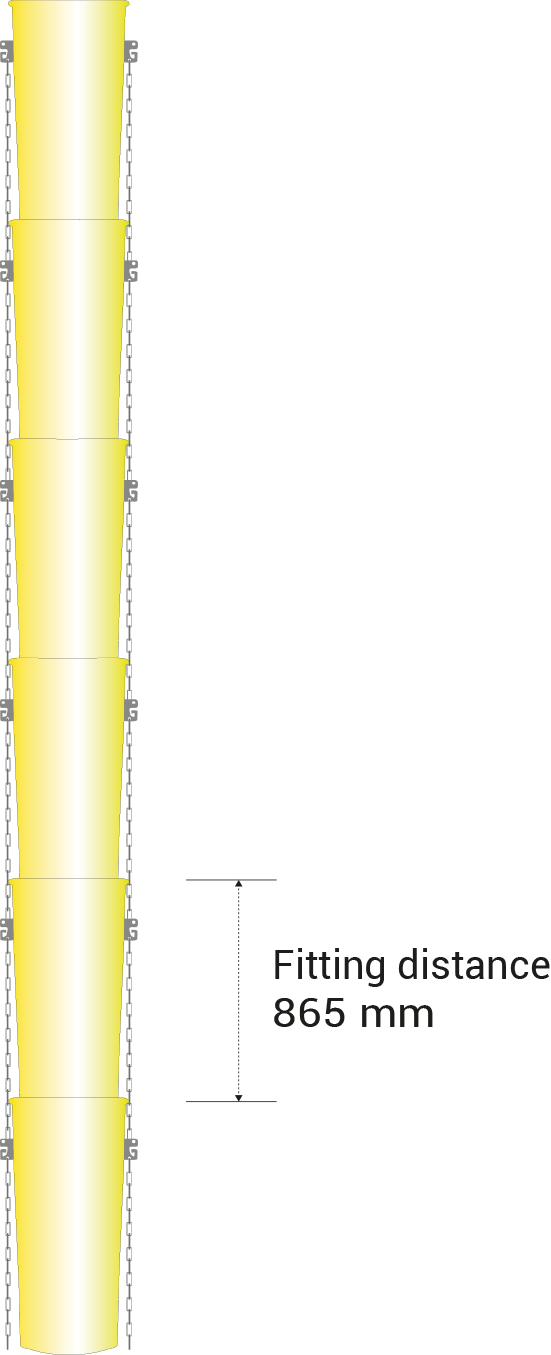

Fitting distance 865mm Length 1055mm; upper diameter 470mm, lower diameter 400mm

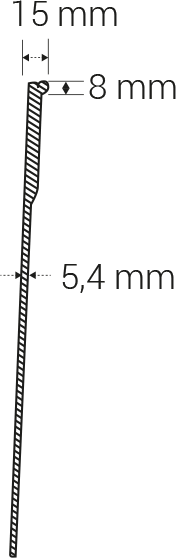

General thickness 5,4mm; upper thickness 15x8mm

Section A

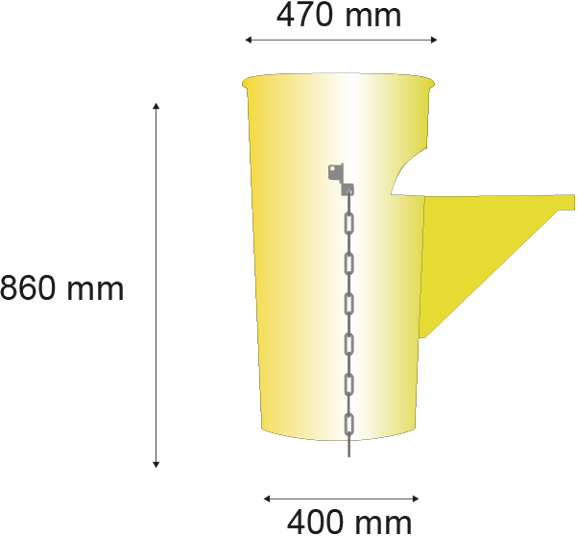

ITM Chutes with hopper

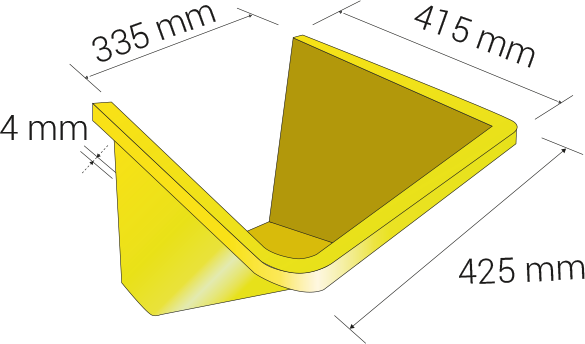

Length 860mm; upper diameter 475mm, lower diameter 373mm Width 425mm, lenght 415mm, thickness 4mm; hopper width 335mm

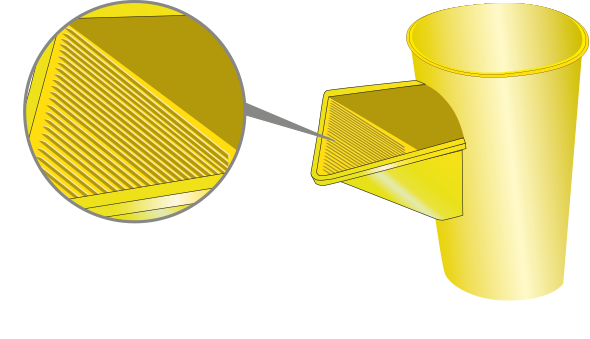

Hopper with inner reinforcement

Calculate how many chutes and hoppers you need

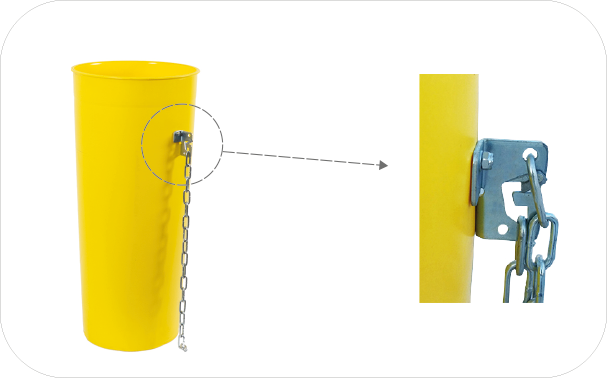

Anchor

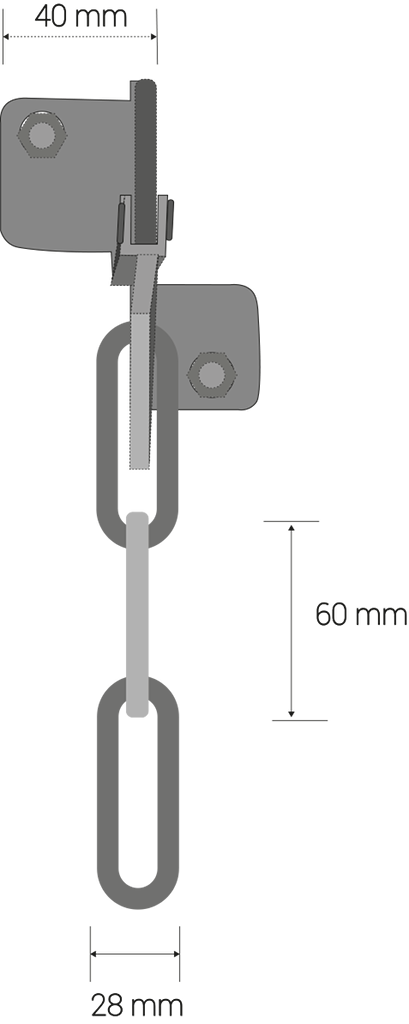

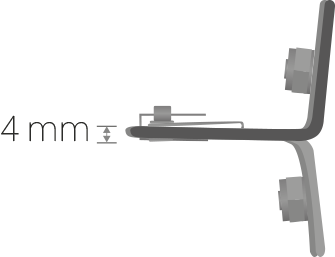

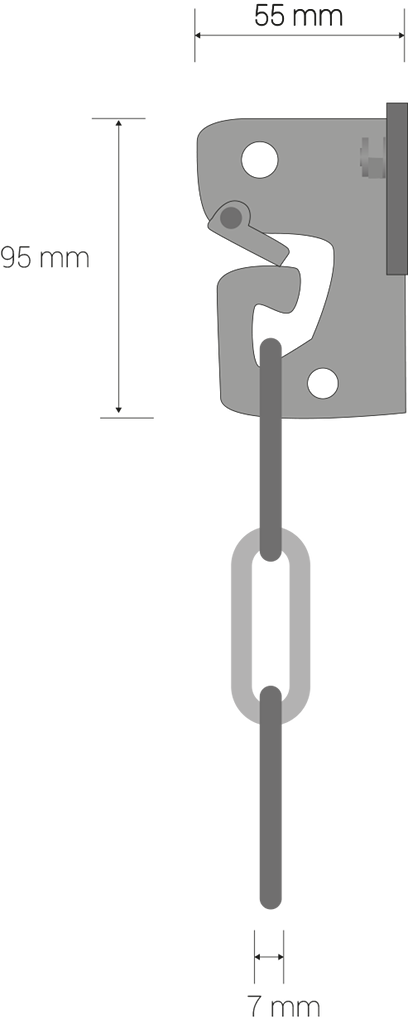

Anchor dimensions Thickness: 4mm
Anchor: 55mm x 85mm Chain link: 60mm x 28mm x 7mm thickness

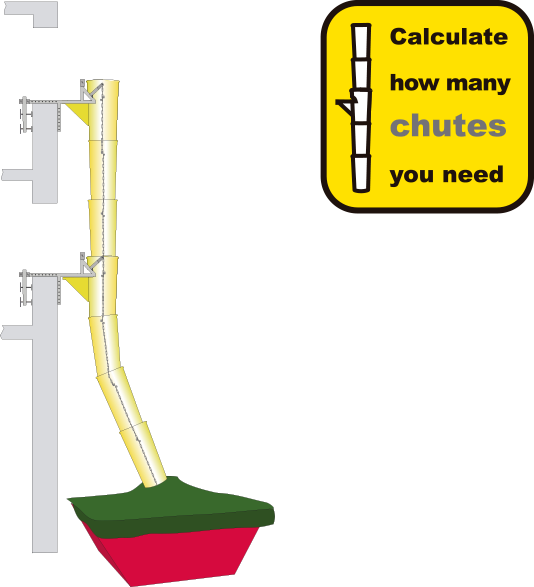

Calculate how many chutes and hoppers you need

With this tool you can quickly and easily calculate the number of chute and chute with hopper needed for your installation. The calculation takes into account the fitting distance between the chutes and the hoppers, and the total height of the tube.

You just have to introduce the total height of the installation in meters, and the number of intermediate discharge points you need.

Meters to cover

Download points

Accesories

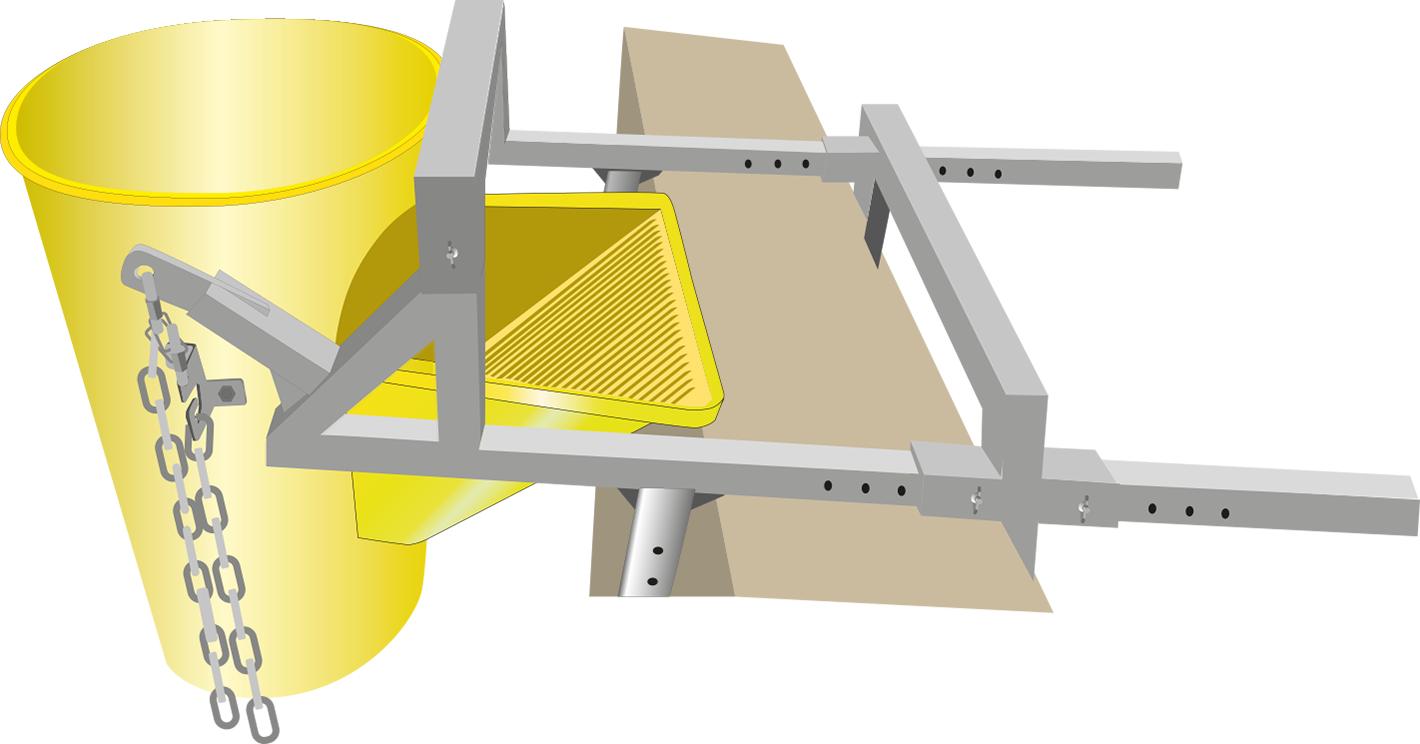

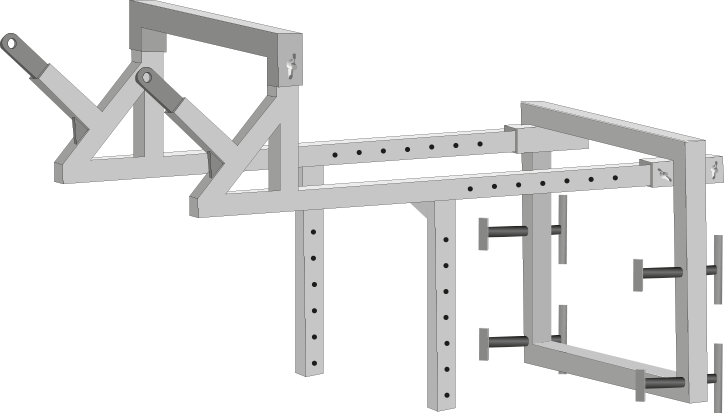

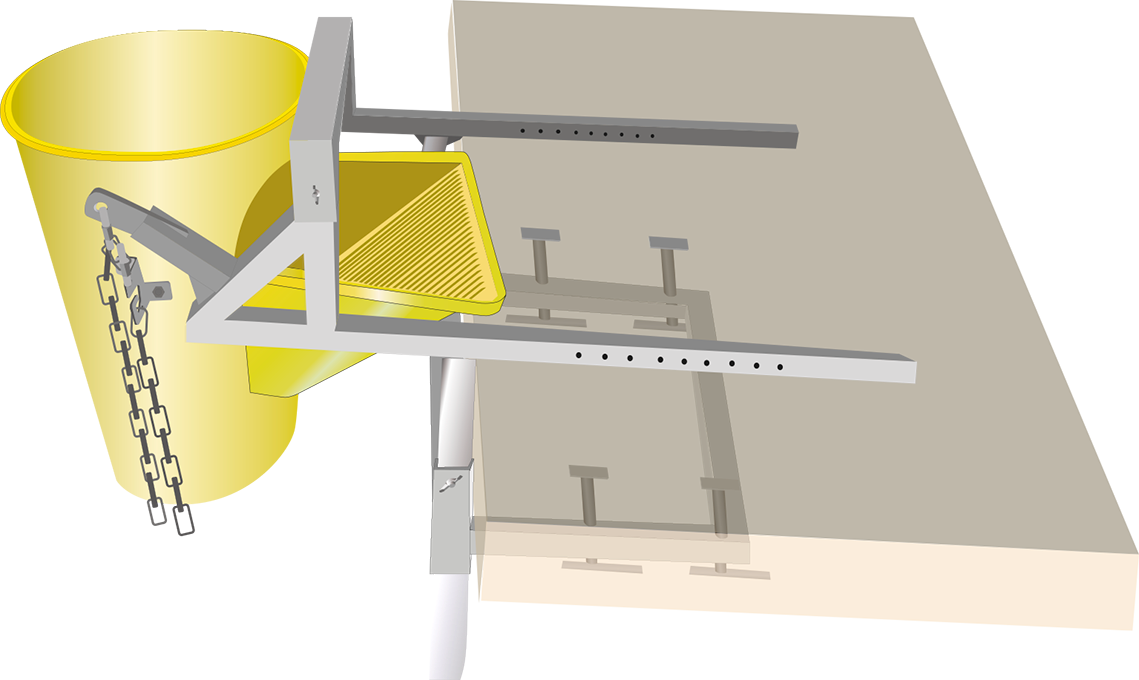

Support bracket for buildings

It is used as an anchor for the rubbish chute column. It is easily anchored to any construction structural element such as the floor slab, a window or a balcony

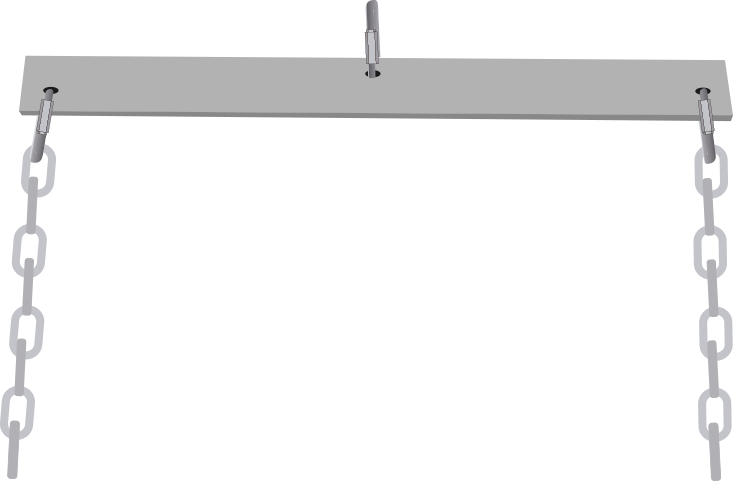

Balance beam column hook

The ITM balance beam column hook facilitates the assembly and disassembly of a chute colum. The main function of the balance beam column hook is to balance the support of the sections that make up the column of the plastic chutes.

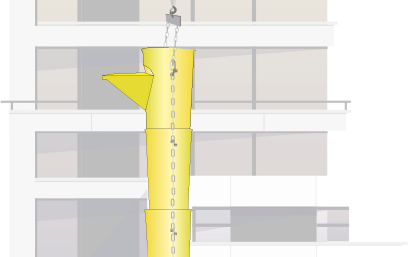

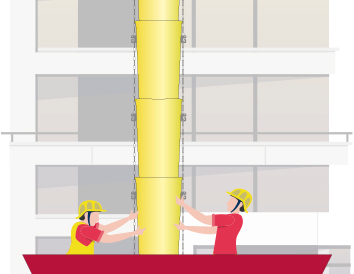

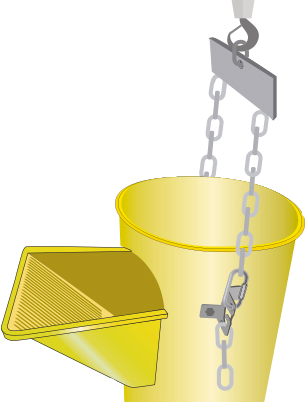

RECOMMENDATION FOR THE INSTALLATION OF DEBRIS CHUTES

We offer you some recommendations for the placement of a chutes column as a debris evacuation system, by using a crane. The specific needs of a work may require a different assembly, which should determine the technical staff.

Packing

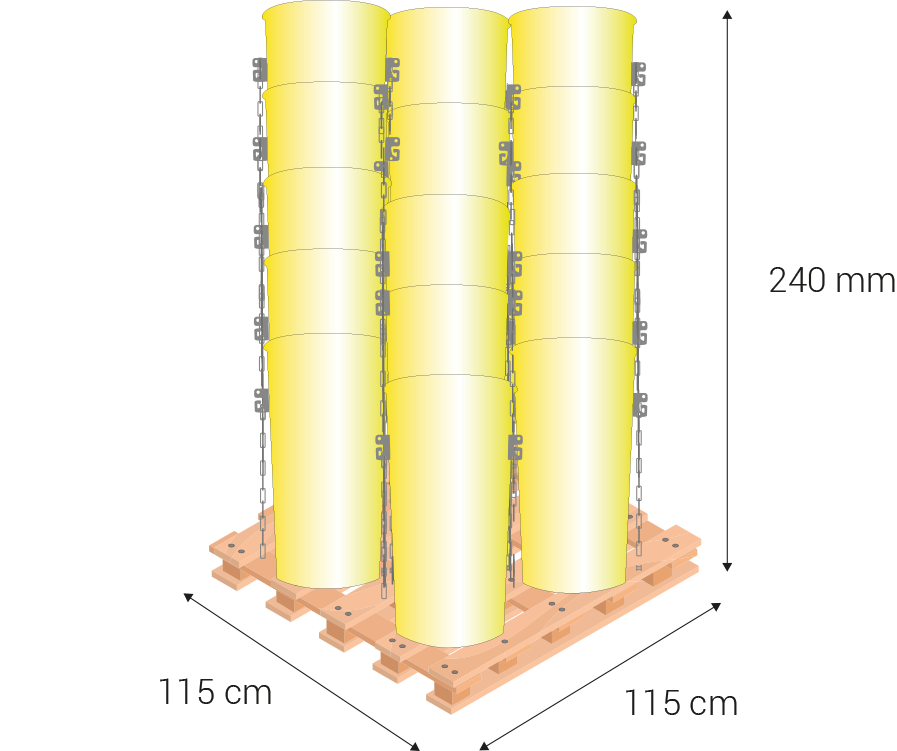

ITM Chutes

25 Units per pallet

Square pallet 115 centimeters, height 240 centimeters

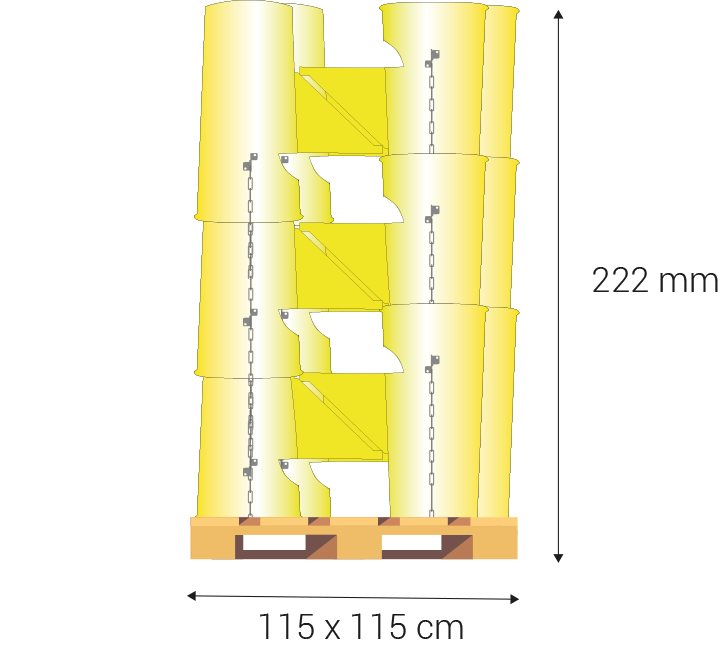

ITM Chutes with hopper

12 Units per pallet

Square pallet 115 centimeters, height 222 centimeters

This may interest you

Standard debris chute

Maxi debris chute

Support bracket for buildings

Balance beam column hook

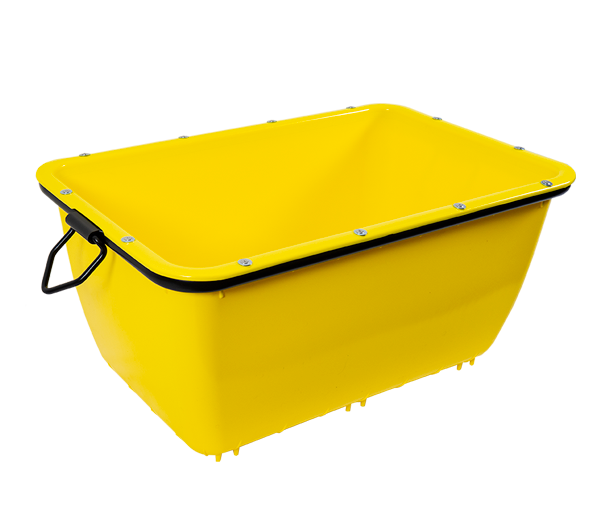

Mortar skip

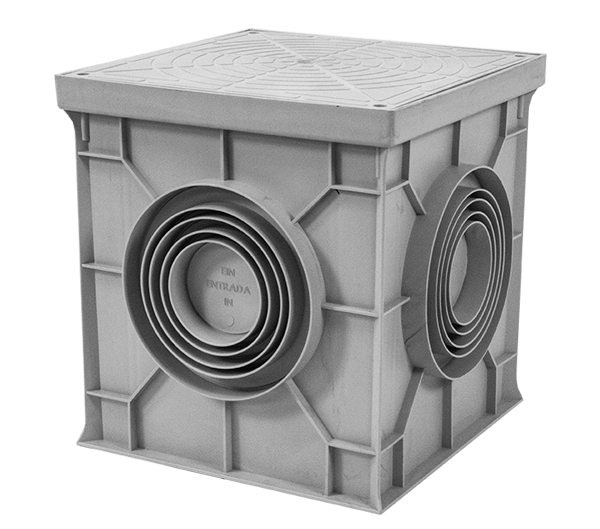

Plastic catch basin

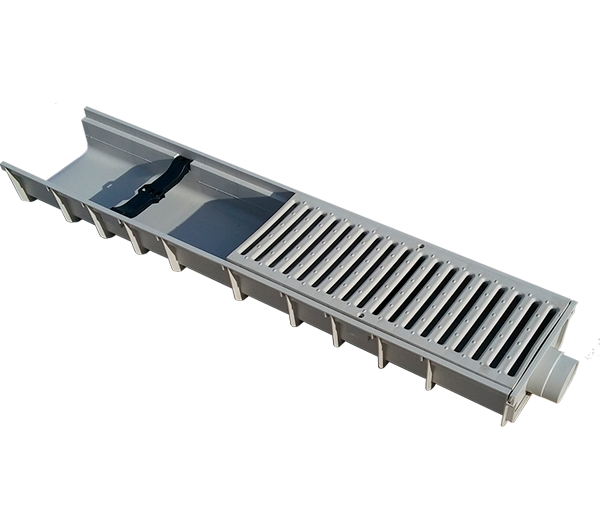

Channel drains

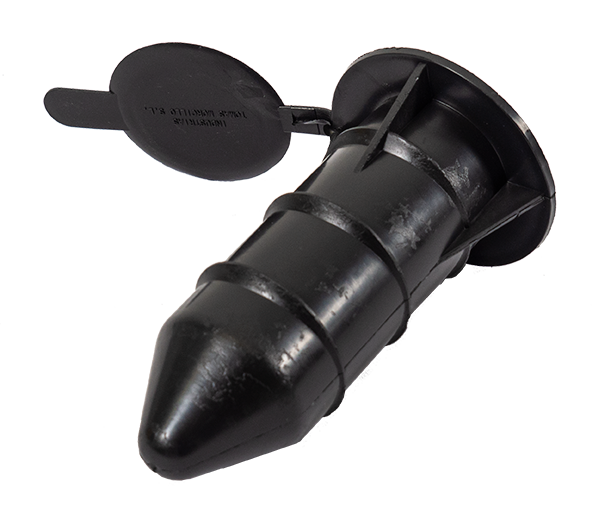

Guardrails guide tubes

Rebar protection caps

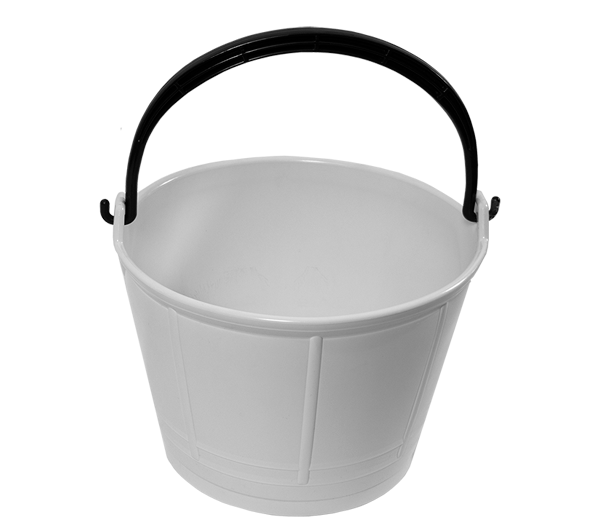

Builders buckets
